HDPE MUNICIPAL PLUMBING SYSTEM

The RIFENG HDPE water supply pipe is a new type of plastic pipe using high-quality polyethylene, also adding necessary antioxidants, ultraviolet absorbers, and other additives, then processed by an extruder. The product has the advantages of being lightweight, flexible, corrosion resistant, and highly impact resistant.

The connection of the pipe and fittings can be integrated with butt welding, hot-melt socket, and electrofusion. This system is safe, reliable, and low-cost, and has been widely used in engineering.

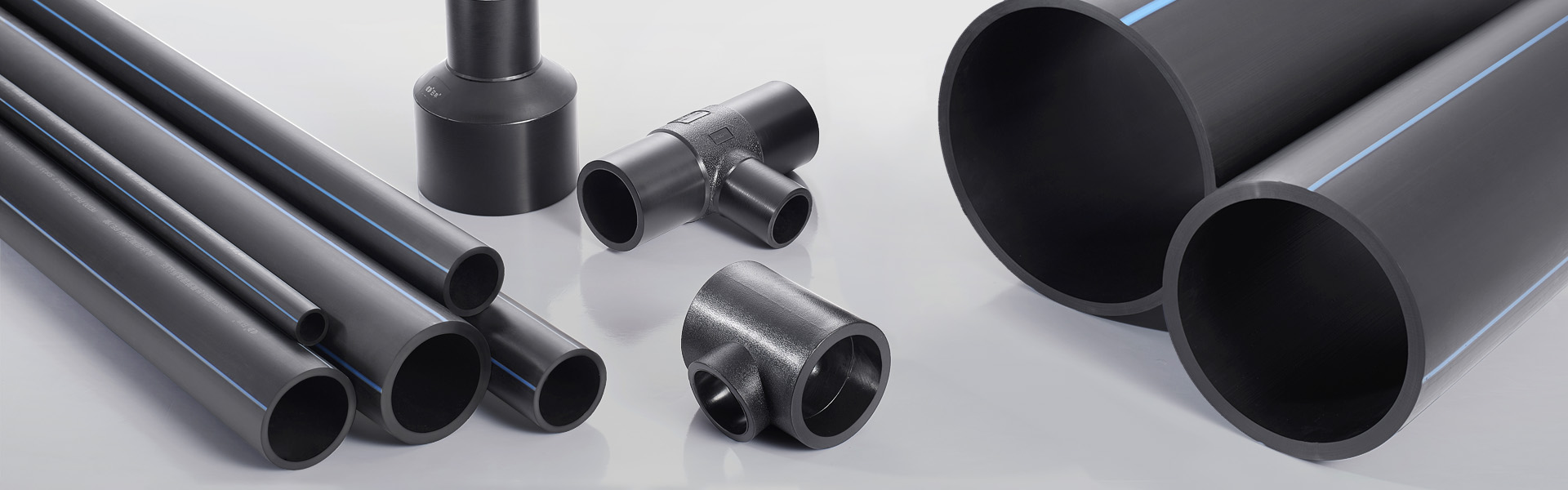

HDPE Municipal Piping System

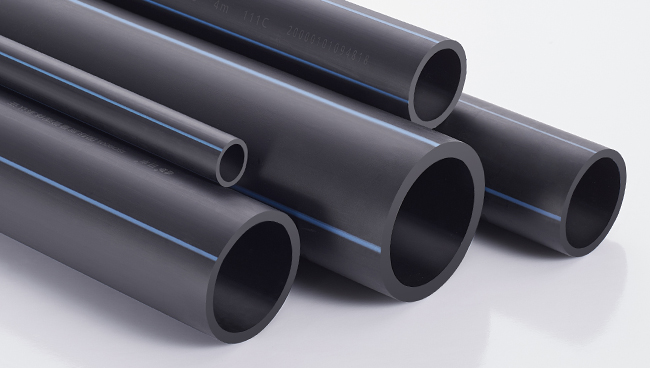

PE100 pipe111

  • Non-toxic, no scaling, does not breed bacteria and avoids secondary pollution of drinking water；
  • The smooth inner wall, corrosion resistance, high strength；
  • A wide range of applications and belongs to the emerging pipeline of municipal engineering.

Technical specification

Advantages:
  • Anti-aging, service life up to 25 years
  • Low-temperature resistance, impact resistance
  • Excellent resistance to stress cracking
  • The smooth inner wall, low water flow resistance
  • Multiple construction methods, reliable connection

Applications:
  • Urban water supply
  • Reconstruction of the water supply network in the old city
  • Industrial raw material transportation
  • Ore and mud transportation
  • Agricultural irrigation
Outside diameter (mm)
 		 PE100 Wall thickness（mm）
SDR26 SDR21 SDR17 SDR13.6 SDR11
PN0.6 PN0.8 PN1.0 PN1.25 PN1.6
20 - - - - 2.3
25 - - - 2.3 2.3
32 - - 2.3 2.4 3.0
40 - 2.3 2.4 3.0 3.7
50 2.3 2.4 3.0 3.7 4.6
63 2.5 3.0 3.8 4.7 5.8
75 2.9 3.6 4.5 5.6 6.8
90 3.5 4.3 5.4 6.7 8.2
110 4.2 5.3 6.6 8.1 10.0
125 4.8 6.0 7.4 9.2 11.4
160 6.2 7.7 9.5 11.8 14.6
180 6.9 8.6 10.7 13.3 16.4
200 7.7 9.6 11.9 14.7 18.2
225 8.6 10.8 13.4 16.6 20.5
250 9.6 11.9 14.8 18.4 22.7
280 10.7 13.4 16.6 20.6 25.4
315 12.1 15.0 18.7 23.2 28.6
355 13.6 16.9 21.1 26.1 32.2
400 15.3 19.1 23.7 29.4 36.3
450 17.2 21.5 26.7 33.1 40.9
500 19.1 23.9 29.7 36.8 45.4
560 21.4 26.7 33.2 41.2 50.8
630 24.1 30.0 37.4 46.3 57.2
710 27.2 33.9 42.1 52.2 64.5
800 30.6 38.1 47.4 58.8 72.6
900 34.4 42.9 53.3 66.2 81.7
1000 38.2 47.7 59.3 72.5 90.2
1200 45.9 57.2 67.9 88.2 -

No.
Item
Index
1
Elongation at break
≥350%
2
Longitudinal retraction rate
≤3%
3
Oxidation induction time
≥20min
4
Melt mass flow rate		 The change rate of pipes and
raw materials does not exceed 25%


5

Hydrostatic strength
（PE80/PE100）
20℃,100h
Ring Stress：9.0/12.4MPa		 No rupture, No leakage

80℃,165h
Ring Stress：4.6/5.5MPa

80℃,1000h
Ring Stress：4/5.0MPa


No.
Item
Index

1
Oxidation induction time
≥20min

2
Melt mass flow rate		 The change rate of pipes and
raw materials does not exceed 20%

3
Welding strength of electrofusion pipe fittings
Percentage of brittle failure≤33.3%

4
Socket fittings-welding strength of butt welded fittings
Test failure is toughness
5
Impact strength of saddle bypass
No rupture, no leakage
6
Hydrostatic strength
（PE80/PE100）
20℃,100h
Ring stress：10.0/12.4MPa
No rupture, no leakage

80℃,165h
Ring stress：4.5/5.4MPa

connection method
Applicable specifications
Main connection tools
Operation scene


Hot melt socket

dn20~dn110

Hot melt socket machine

Only need a small space, can be used for indoor and outdoor construction


Butt Fusion

≥dn63

Butt Fusion Machine

Need more space, recommended for outdoor construction

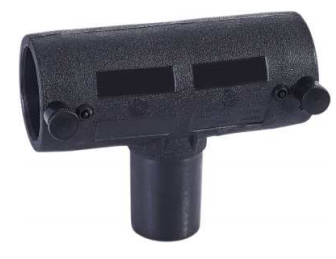

Electrofusion

All specifications

Electrofusion welding machine

Only need a small space, can be used for indoor and outdoor construction


When connecting with other material pipes, flanges, threads, steel wire adapters, and other connection methods can be used

Product Overview
